 Wireless Switch Remote Control System


Wireless Switch / Relay Control Box System


Wireless Remote Control Pump System Series: WPC24-XL

Features

    Wireless Bridge Between Switch & Motor or Pump

    System Works With Any Dry-contact Switch

    Up To 1 Mile (LOS) Transmit/Receive Distance

    Use To Control Pump, Valve, Motor or Lighting

    Optional Solar Power Kit for Transmitter

    Transmitter Can Be Hardwired, Battery or Solar

    Receiver Unit Features Control Relays

    License Free Point-to-point Radio Operation

Applications

Pump, Valve or Motor Control, Lighting Systems, Remote Control Irrigation Systems


Description

Series WPC24-XL Wireless Switch/Control System provides a wireless bridge between any type dry-contact switch and a control relay. When a switch connected to the transmitting unit opens or closes signals are sent via a license free radio signal to a receiver unit up to 1 mile (Line-of-site) away. When the control box receives the proper wireless signal from the transmitter a control relay inside the panel is energized to operate a pump, valve or motor.

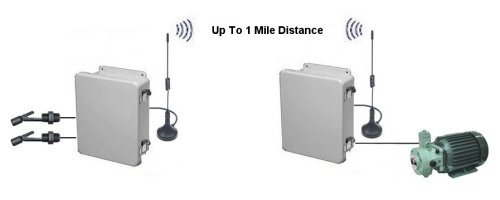

Typical Wireless Remote Control Water Pump Application Using Two level Switches for Pump Up/Pump Down Operation
wireless_control_system

General Specifications
Radio Frequency: 2.4GHz
Transmit Power: 63 mW
Transmit/Recieve Distance: Up to 1 Mile
Transmit Time: 250 msec
Wiring Connection: Terminal Block
Operating Temperature: -10 to 130 ºF (-23 to 54 ºC)
wireless switch control relay system wireless switch control relay system

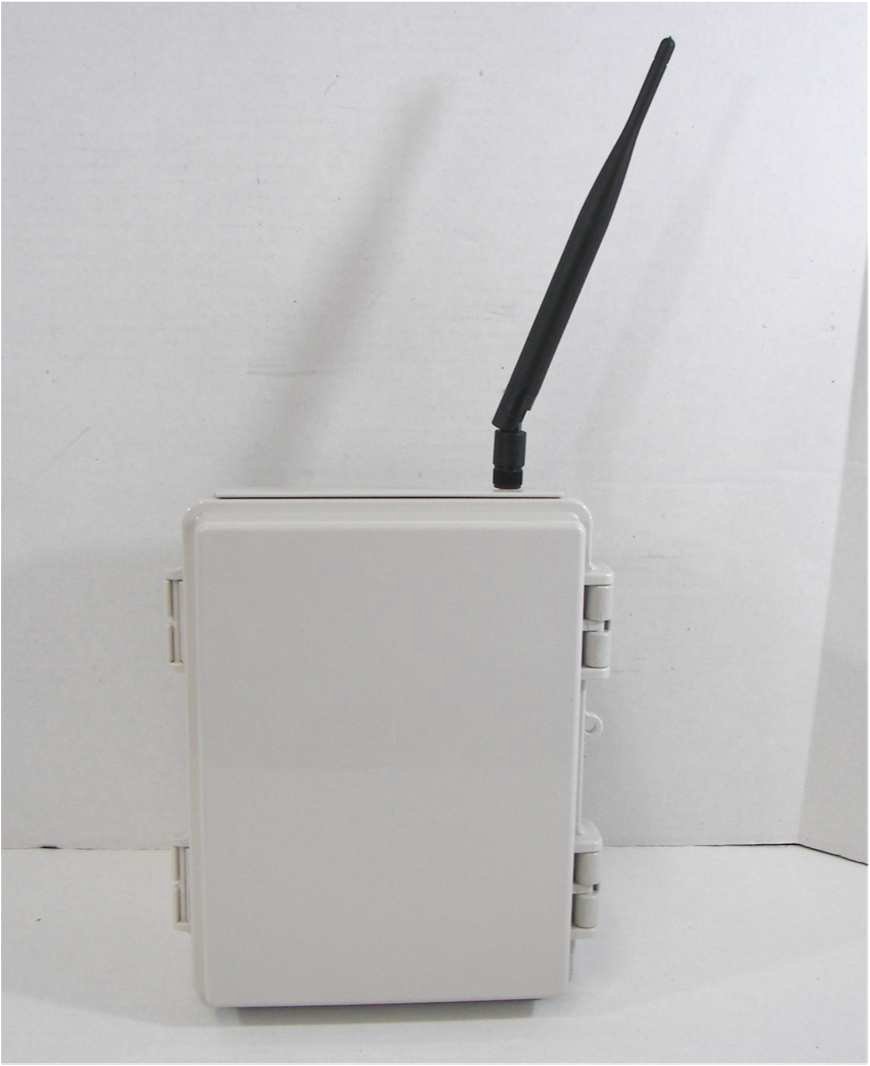

    Wireless Switch Transmitter             Wireless Relay Control Receiver

Transmitter Specifications
Main Input /Alarm Input: Dry-contact Switch
Radio Frequency: 2.4GHz
Transmit Power: 63 mW
Transmit/Recieve Distance: Up to 1 Mile
Transmit Time: 250 msec
Wiring Connection: Terminal Block
Operating Power: Can be Hardwired, Battery or Solar
Hardwired: 6 to 24Vdc @ 350mA or 120VAC 50/60 Hz
Battery: 6/12V Battery (See Manual For Battery Life Estimates)
Optional Solar: Includes Panel, Battery, Charge Controller

Receiver/Relay Box Specifications
Operating Power: 120VAC 50/60 Hz or 24 Vdc
RF Input Impedance: 50 Ohm nominal
Control Relay: DPDT, 10A 120/240VAC

Available Switch Transmitter Models (For USA/Canada Only)
Model Number Description Switch Inputs
WPC24-XL-SW1 Wireless Dry-contact Switch Transmitter 1
WPC24-XL-SW2 Wireless Dry-contact Switch Transmitter 2
WPC24-XL-SW4 Wireless Dry-contact Switch Transmitter 4

Available Receiver / Control Box Models (For USA/Canada Only)
Model Number Relay Capacity Description Control Relays
WPC24-XL-RC1 120/240VAC, 10 Amp Wireless Control Box 1
WPC24-XL-RC2 120/240VAC, 10 Amp Wireless Control Box 2
WPC24-XL-RC4 120/240VAC, 10 Amp Wireless Control Box 4

 Note: Continued product improvements make specifications subject to change without notice.

This product is approved for use in USA and Canada only.
