Wireless Remote Control System
|
|
|
|
2.4 GHz Industrial Wireless Remote Control System
|
|
Series: WCS-24
Features
Up To 1 Mile Remote Control Operation
Control Up To 8 Remote Devices
Mechanical or (SSR) Solid State Control Relays
AC, DC or Solar Power Operation
Feedback LEDs on Transmitter Report Status
Weatherproof NEMA Rated Enclosures
Preassembled, Prewired, Ready-To-Operate
Applications
Pump, Valve & Motor Control
Irrigation Systems
Lighting Applications, Door & Gate Control
Description
Series WCS-24 - Wireless Remote Control System provides a wireless
bridge for remotely activating equipment from a distance of up to 1 mile using wireless
2-way communication. The system has been designed and engineered for easy installation and
trouble free operation. The transmitter is equipped with contact closure inputs, used to
control relays on the receiver unit. Both transmitter and receiver controller are included
when you purchase a WCS-24 system matched set. Models are available with 5, 10, 20 and 30 Amp mechanical Form C relays or Solid State Relays (SSR). Transmitter can be activated with dry-contact manual switches or connected to a PLC for automated control.
A perfect solution for irrigation systems, water pumps, control valves,
doors, gates and lighting applications.
|
|

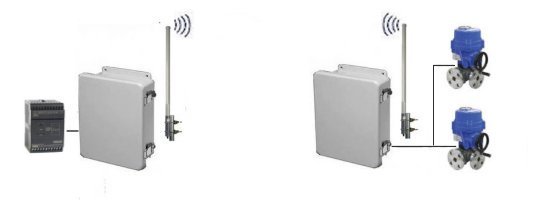

Application Example: Controlling 2 Motorized Valves with a Programmable Logic Controller (PLC)
|
|
General Specifications
|
|
Radio Frequency:
|
2.4 GHz
|
|
Immunity:
|
Frequency Hopping Spread spectrum
|
|
Transmit Power:
|
63 mW
|
|
Transmitter/Receiver Code Matching:
|
Factory set
|
|
Transmit/Receive Distance:
|
Up to 300' Indoor/Urban
Up to 1 Mile (LOS) Line-of-site
|
|
|
Transmitter Specifications
|
|
Transmit Time:
|
250ms
|
|
Control Connection:
|
Terminal Blocks
|
|
Feedback Indicators:
|
Relay Status LEDs
|
|
Activation:
|
Dry contact (Push-button, switch, relay)
|
|
Power:
|
120VAC, 12Vdc or Solar Power Option
|
|
Operating Temperature:
|
-4 to 140 ēF (-20 to 60 ēC)
|
|
Enclosure:
|
ABS/PCT Plastic
|
|
Enclosure Rating:
|
NEMA 4, 4X
|
|
Enclosure Size:
|
See model table
|
|
|
Control Receiver Specifications
|
|
Control Output Type:
|
See model table
|
|
Control Connection:
|
Terminal Blocks
|
|
Power:
|
120VAC, 12Vdc or Solar Power Option
|
|
Enclosure:
|
ABS/PCT Plastic
|
|
Enclosure Size:
|
See model table
|
|
Operating Temperature:
|
-4 to 140 ēF (-20 to 60 ēC)
|
Enclosure Rating:
|
NEMA 4, 4X
|
|
|
Avialable Models with Mechanical Relays
|
|
Model Number
|
Control Lines
|
Control Relays
|
Transmitter / Receiver Enclosure
|
|
WCS-24-1-5A
|
1
|
5A SPDT (1 Each)
|
6 x 6 x 4
|
|
WCS-24-1-10A
|
1
|
10A SPDT (1 Each)
|
6 x 6 x 4
|
|
WCS-24-1-20A
|
1
|
20A SPDT (1 Each)
|
6 x 6 x 4
|
|
WCS-24-1-30A
|
1
|
30A SPST (1 Each)
|
6 x 6 x 4
|
|
WCS-24-2-5A
|
2
|
5A SPDT (2 Each)
|
8 x 6 x 4
|
|
WCS-24-2-10A
|
2
|
10A SPDT (2 Each)
|
8 x 6 x 4
|
|
WCS-24-2-20A
|
2
|
20A SPDT (2 Each)
|
8 x 6 x 4
|
|
WCS-24-2-30A
|
2
|
30A SPST (2 Each)
|
8 x 6 x 4
|
|
WCS-24-4-5A
|
4
|
5A SPDT (4 Each)
|
8 x 6 x 4
|
|
WCS-24-4-10A
|
4
|
10A SPDT (4 Each)
|
8 x 6 x 4
|
|
WCS-24-4-20A
|
4
|
20A SPDT (4 Each)
|
8 x 6 x 4
|
|
WCS-24-4-30A
|
4
|
30A SPST (4 Each)
|
8 x 6 x 4
|
|
WCS-24-8-5A
|
8
|
5A SPDT (8 Each)
|
12 x 8 x 5
|
|
WCS-24-8-10A
|
8
|
10A SPDT (8 Each)
|
12 x 8 x 5
|
|
WCS-24-8-20A
|
8
|
20A SPDT (8 Each)
|
12 x 8 x 5
|
|
WCS-24-8-30A
|
8
|
30A SPST (8 Each)
|
12 x 8 x 5
|
|
|
Avialable Models with Solid State Relays (SSR)
|
|
Model Number
|
Control Lines
|
Control Relays
|
Transmitter / Receiver Enclosure
|
|
WCS-24-1-SR3R
|
1
|
3A, 240VAC SSR (1 Each) NO, SPST, For Resistive Loads
|
6 x 6 x 4
|
|
WCS-24-1-SR3I
|
1
|
3A, 240VAC SSR (1 Each) NO, SPST, For Inductive Loads
|
6 x 6 x 4
|
|
WCS-24-1-SR15R
|
1
|
15A, 240VAC SSR (1 Each) NO, SPST, For Resistive Loads
|
6 x 6 x 4
|
|
WCS-24-1-SR15I
|
1
|
15A, 240VAC SSR (1 Each) NO, SPST, For Inductive Loads
|
6 x 6 x 4
|
|
WCS-24-2-SR3R
|
2
|
3A, 240VAC SSR (2 Each) NO, SPST, For Resistive Loads
|
8 x 6 x 4
|
|
WCS-24-2-SR3I
|
2
|
3A, 240VAC SSR (2 Each) NO, SPST, For Inductive Loads
|
8 x 6 x 4
|
|
WCS-24-2-SR15R
|
2
|
15A, 240VAC SSR (2 Each) NO, SPST, For Resistive Loads
|
8 x 6 x 4
|
|
WCS-24-2-SR15I
|
2
|
15A, 240VAC SSR (2 Each) NO, SPST, For Inductive Loads
|
8 x 6 x 4
|
|
WCS-24-4-SR3R
|
4
|
3A, 240VAC SSR (4 Each) NO, SPST, For Resistive Loads
|
8 x 6 x 4
|
|
WCS-24-4-SR3I
|
4
|
3A, 240VAC SSR (4 Each) NO, SPST, For Inductive Loads
|
8 x 6 x 4
|
|
WCS-24-4-SR15R
|
4
|
15A, 240VAC SSR (4 Each) NO, SPST, For Resistive Loads
|
8 x 6 x 4
|
|
WCS-24-4-SR15I
|
4
|
15A, 240VAC SSR (4 Each) NO, SPST, For Inductive Loads
|
8 x 6 x 4
|
|
WCS-24-8-SR3R
|
8
|
3A, 240VAC SSR (8 Each) NO, SPST, For Resistive Loads
|
12 x 8 x 5
|
|
WCS-24-8-SR3I
|
8
|
3A, 240VAC SSR (8 Each) NO, SPST, For Inductive Loads
|
12 x 8 x 5
|
|
WCS-24-8-SR15R
|
8
|
15A, 240VAC SSR (8 Each) NO, SPST, For Resistive Loads
|
12 x 8 x 5
|
|
WCS-24-8-SR15I
|
8
|
15A, 240VAC SSR (8 Each) NO, SPST, For Inductive Loads
|
12 x 8 x 5
|
|
Note: Continued product improvements make specifications subject to change without notice.
|
|
|
