 Wireless Remote Control System


Wireless Remote Control Matched Transmitter/Receiver Set


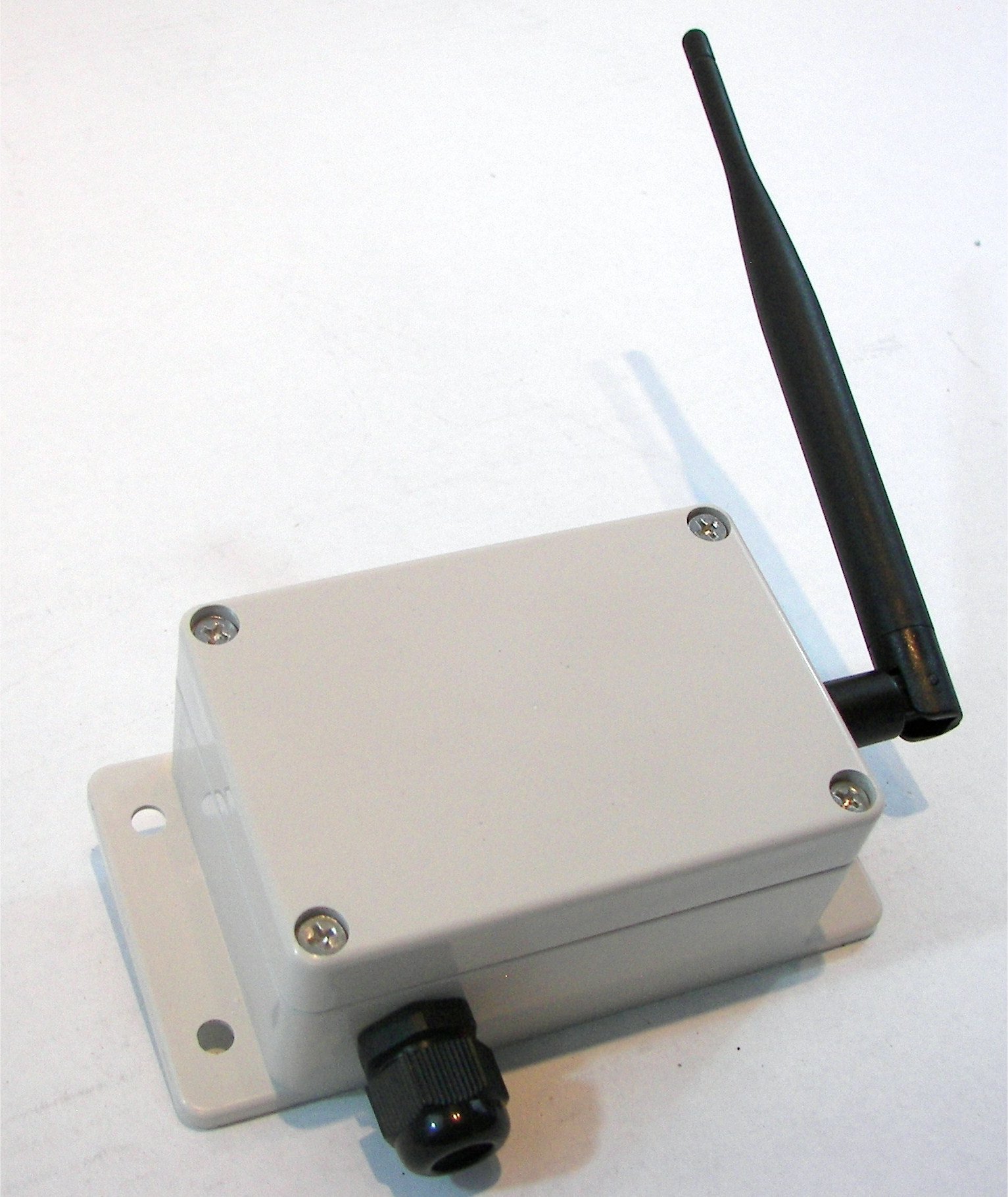

Wireless Remote Control System Series: WCS24-MS

Features

    Up To 1 Mile Wireless Operation

    Uses License Free RF Technology

    Connect Switches or PLC To Activate

    10, 20 or 40 Amp Control Relays

    Transmitter Displays Status of Remote Relays

    AC or DC Power Operation

    Models with 2 or 4 Control Lines

    Weatherproof NEMA 4X Rated Enclosures




Applications

    Pumps, Motorized Valves, Electric Gates, Lighting and Irrigation Systems


Description

WCS24-MS - Wireless Remote Control System allows for remotely activating equipment from a distance of up to 1 mile using wireless 2-way 802.15.4 communication. The transmitter is equipped with contact closure inputs, used to control relays on the receiver unit. Models are available with 10, 20 or 40 Amp mechanical relays. Transmitter can be activated with dry-contact switches or connected to a PLC for automated control. Approved for use in USA and Canada only.

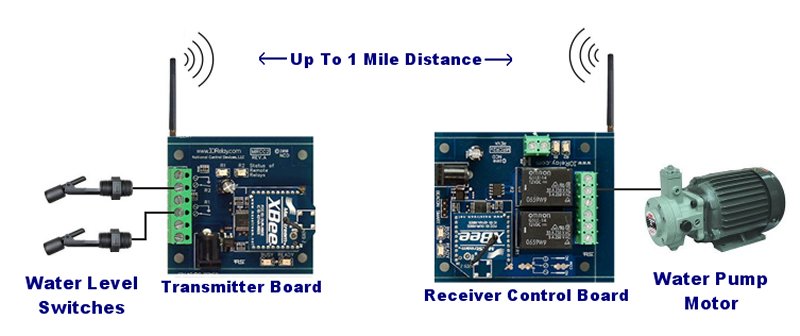

Typical Wireless Remote Control Application
wireless_control_system

General Specifications
Radio Frequency: 2.4GHz
Transmit Power: 63 mW (10mW for Europe models)
Transmit/Recieve Distance: USA/CA Models: Up to 1 Mile LOS, Europe Models: Up to 300' LOS
Transmit Time: 250 msec
Wiring Connection: Terminal Block
Operating Temperature: -10 to 130 F (-23 to 54 C)

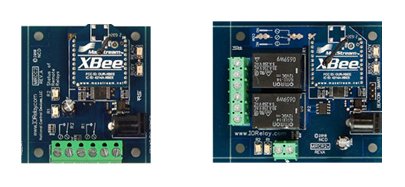

Wireless Transmitter/Receiver Board Set Example
wireless_control_system

Available Models (For USA/Canada Only)
Model Number Description
WCS24-MS-2-10A Wireless Transmitter/Reciever Set - 2 Control Lines, 10 Amp Control Relays
WCS24-MS-4-10A Wireless Transmitter/Reciever Set - 4 Control Lines, 10 Control Amp Relays
WCS24-MS-2-20A Wireless Transmitter/Reciever Set - 2 Control Lines, 20 Amp Control Relays
WCS24-MS-4-20A Wireless Transmitter/Reciever Set - 4 Control Lines, 20 Amp Control Relays
WCS24-MS-2-40A Wireless Transmitter/Reciever Set - 2 Control Lines, 40 Amp Control Relays
WCS24-MS-4-40A Wireless Transmitter/Reciever Set - 4 Control Lines, 40 Amp Control Relays

Available Models (For Europe Only)
Model Number Description
WCS24-MS-E-2-10A Wireless Transmitter/Reciever Set - 2 Control Lines, 10 Amp Control Relays
WCS24-MS-E-4-10A Wireless Transmitter/Reciever Set - 4 Control Lines, 10 Amp Control Relays
WCS24-MS-E-2-20A Wireless Transmitter/Reciever Set - 2 Control Lines, 20 Amp Control Relays
WCS24-MS-E-4-20A Wireless Transmitter/Reciever Set - 4 Control Lines, 20 Amp Control Relays
WCS24-MS-E-2-40A Wireless Transmitter/Reciever Set - 2 Control Lines, 40 Amp Control Relays
WCS24-MS-E-4-40A Wireless Transmitter/Reciever Set - 4 Control Lines, 40 Amp Control Relays

 Note: Continued product improvements make specifications subject to change without notice.

This product is approved for use in USA, Canada and Europe only.
