Wireless Remote Control Transmitter/Receiver Set
|
|
|
|
Industrial Wireless Remote Control Transmitter/Receiver Set
|
|
Features
Provides Wireless Bridge Between Switch & Relay
Activate Transmitter with Any Dry-contact Switch
Models Available With 1, 2 or 4 Control Lines
Up To 1 Mile Line-of-site Transmit/Receive Distance
Receiver Provides Open-collector Control Output
Powered By 12-24V DC Supply
NEMA 4, 4X Powder Coated Aluminum Enclosures
Pre-configured, Ready-To-Operate
Sold As Transmitter/Receiver Matched Set
License Free Radio Operation
|
Applications
Tank Level Monitoring, Pump or Motor Control,
Valve Activation,
Gate or Lighting Control
Description
The WIDXL-24 Series Wireless Industrial Remote Control System for remotely activating equipment from a distance up to 1 mile away using license free wireless communication. The transmitter is equipped with up to 4 contact closure inputs that are used to control open-collector outputs on the receiver unit. Models are available with 1, 2 or 4 control lines. Units are activated with dry-contact switches or connected to a PLC for automated control.
|
|

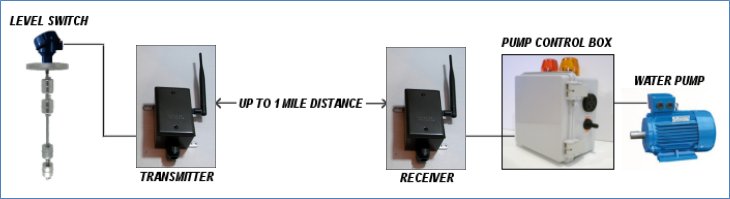

Wireless Level Switch Providing Pump Control & Hi / Lo Limit Alarms
|
|
General Specifications
|
|
Radio Frequency:
|
ISM 2.4GHz
|
|
Regulatory:
|
FCC Part 95 (No license required)
|
|
Control Lines:
|
1, 2 or 4
|
|
Transmitter/Receiver Code Matching:
|
Factory set
|
|
Antenna Connection:
|
RP-SMA
|
|
Wiring Connection:
|
Terminal Blocks
|
Transmit/Receive Distance
(with included antennas):
|
Indoor/Urban 100ft, Line-of-site 600ft
|
Transmit/Receive Distance
(with optional antennas):
|
Indoor/Urban 300ft, Line-of-site 1 Mile
|
|
Operating Temperature:
|
-22 to 113 ºF (-30 to 45 ºC)
|
|
Enclosures:
|
NEMA 4, 4X Powder Coated Aluminum
|
|
Antennas:
|
5dbi, Omni-directional (Included)
|
|
Transmitter Specifications
|
|
Control Input Type:
|
Switch (Dry-contact)
|
|
RF Power Output:
|
63mW
|
|
RF Data Rate:
|
250 kbps
|
|
RF Output Impedance:
|
50 Ohm nominal
|
|
Operating Power:
|
12 - 24V DC @ 2W max
|
|
Receiver Specifications
|
|
Receive Sensitivity:
|
-100 dBm
|
|
RF Input Impedance:
|
50 Ohm nominal
|
|
Operating Power:
|
12 - 24V DC @ 3W max
|
|
Control Output:
|
Open-collector, 12-24V DC, 1.2W Max
|
|
Regulatory Approvals
|
|
Regulatory:
|
FCC Part 95 (No license required)
|
|
FCC(USA):
|
OUR-XBEEPRO
|
|
IC (Canada):
|
4214A-XBEEPRO
|
|
Available Models
|
|
Model Number
|
Description
|
Control Lines
|
|
WIDXL-24-1
|
Industrial Wireless Remote Control Transmitter/Receiver Set (USA/CANADA)
|
1
|
|
WIDXL-24-2
|
Industrial Wireless Remote Control Transmitter/Receiver Set (USA/CANADA)
|
2
|
|
WIDXL-24-4
|
Industrial Wireless Remote Control Transmitter/Receiver Set (USA/CANADA)
|
4
|
|
Each Wireless Transmitter/Receiver Set includes 5dBi Antennas, 9'Antenna Extension Cables, Antenna Mounting Brackets and User Manual.
Note: Continued product improvements make specifications subject to change without notice.
|
|
This product is approved for use in USA, Canada and Europe only.
|
