 Long Distance Wireless Switch/Control Panel System


Long Distance Wireless Switch/Control Panel System

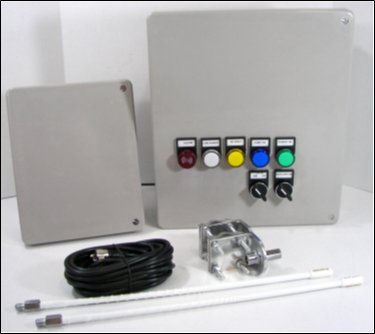

Wireless Remote Control Pump System Series: WPC27

Features

    Wireless Bridge Between Switch & Control Panel

    System Works With Any Dry-contact Switch

    Up To 6 Mile (LOS) Transmit/Receive Distance

    Use To Control Pump, Valve, Motor or Lighting

    Includes Power, Alarm & Control Fusing

    Transmitter Can Be Hardwired, Battery or Solar

    Panel Features Contactor, Alarm & Indicators

    Weatherproof NEMA 4X Rated Enclosures

    License Free Point-to-point Radio Operation


Applications

Water Tanks, Pumps, Motorized Valves,Irrigation Systems or Remote Lighting Control


Description

Series WPC27 Long Distance Wireless Switch/Control Panel System provides a wireless bridge between any type dry-contact switch and an electro-mechanical contactor. When a switch connected to the transmitting unit opens or closes signals are sent via a license free radio signal to a receiver unit up to 6 mile (Line-of-site) away. When the pump control panel receives the proper wireless signal from the transmitter a power contactor inside the panel is energized to operate a pump, valve or motor. The Pump Control Panel features power and contactor fusing, latching or non-latching control, indicator lights and an auxiliary audible/beacon alarm.

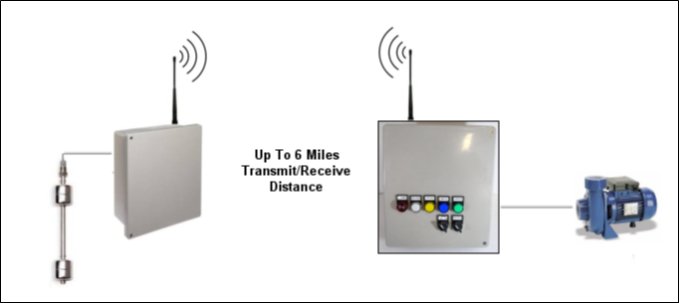

Typical Wireless Remote Control Water Pump Application
wireless pump control panel system

General Specifications
Radio Frequency: 27.255 MHz
Transmit Time: 500 msec
Wiring Connection: Terminal Block
Operating Temperature: -10 to 130 ºF (-23 to 54 ºC)
Transmit/Receive RF Distance: Up to 3 Miles Line-of-sight (With Included 24" Antennas)
Up to 6 Mile Line-of-sight (With 36" Optional Antennas)

Transmitter Specifications
Main Input /Alarm Input: Dry-contact Switch
RF Power Output: 10 Watts
Operating Power: Hardwired - 6 to 24Vdc @ 350mA or 120VAC 50/60 Hz
Battery - 6/12V Battery (See Manual For Battery Life Estimates)
Optional Solar - Includes Panel, Battery, Charge Controller
Enclosure: Fiberglass/plastic blend NEMA 4X

Photocell Transmitter Specifications
Main Input /Alarm Input: Lighting Photocell (Standard Twist lock)/ Dry-contact Switch
RF Power Output: 10 Watts
Operating Power: Hardwired - 6 to 24Vdc @ 350mA or 120VAC 50/60 Hz
Battery - 6/12V Battery (See Manual For Battery Life Estimates)
Optional Solar - Includes Panel, Battery, Charge Controller
Enclosure: Fiberglass/plastic blend NEMA 4X

Receiver/Contactor Panel Specifications
Operating Power: 120/240 VAC 50/60Hz
RF Input Impedance: 50 Ohm nominal
Control Contactor: 2-phase, See model chart for capacity
Fusing: System power and contactor poles
Control Action: Non-latching or Latching (Front panel switch)
Auxiliary Relay Alarm: 1 Each, SPDT 10A
Enclosure: Fiberglass/plastic blend (Indoor or protected Use)
Control Panel Indicator Lights: Power: Green, Run: Blue, RF Fault: Yellow, Low Operating Power (Transmitter Side): White, Alarm: Red with Audible Buzzer

Available Tranmitter Models
Model Number Description
WPC27-SW Wireless Dry-contact Switch Transmitter
WPC27-PC Wireless Photo-cell Switch Transmitter

Available Receiver Control Panel Models
Model Number Description
WPC27-CP10A 120/240VAC, 10 Amp Wireless Control Panel
WPC27-CP20A 120/240VAC, 20 Amp Wireless Control Panel
WPC27-CP30A 120/240VAC, 30 Amp Wireless Control Panel
WPC27-CP40A 120/240VAC, 40 Amp Wireless Control Panel

 Note: Continued product improvements make specifications subject to change without notice.

This product is approved for use in USA and Canada only.
