Wireless 4-20mA Transmitter/Receiver
|

|

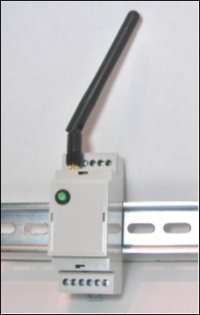

Din-rail Wireless 4-20mA Transmitter/Receiver Set
|
Model: DRWS-420
Features
    Wireless Bridge Between 4-20mA Sensor & Instrument
    Sold As Transmitter/Receiver Factory Match Set
    Up To 1 Mile Line-of-site Transmit/Receive Distance
    Adds Wireless Capability To Any Existing System
    Easy To Install Din-rail Style Enclosures
    Can Be 12-24VDC Battery or Solar Powered
    License Free Point-to-point Radio Operation
|
Applications
Tank Level Monitoring,
Process Controls & Instrumentation,
Add Wireless Capability To Existing Application
Description
Model DRWS-420 Wireless 4-20mA Transmitter/Receiver Set provides a wireless bridge between any 4-20mA loop powered sensor and a 4-20mA input process monitoring or control Instrument. The 4-20mA analog current readings from a sensor connected to the transmitting unit are sent via a license free radio signal to a receiver unit up to 1 mile (Line-of-site) away. The receiving unit reproduces an accurate 4-20mA analog output that matches the 4-20mA signal.
|
SAMPLE APPLICATION SHOWNING LEVEL SENSOR SENDING WIRELESS 4-20MA READINGS TO REMOTE PLC DEVICE
|
|
General Specifications
|
Radio Frequency:
|
2.4GHz
|
RF Output Impedance:
|
50 Ohm nominal
|
Transmitter/Receiver Code Matching:
|
Factory set
|
Operating Power:
|
24Vdc @ 250mA
|
Wiring Connection:
|
Terminal Blocks
|
Transmit/Receive Distance (-USCA Model):
|
Up to 400' Line-of-sight (With Included 3dbi Antennas)
Up to 1700' Line-of-sight (With Optional 7dbi Antennas)
Up to 1/2 Mile Line-of-sight (With Optional 12dbi Antennas)
|
Transmit/Receive Distance (-EU Model):
|
Up to 100' Line-of-sight (With Included 3dbi Antennas)
Up to 200' Line-of-sight (With Optional 7dbi Antennas)
Up to 300' Line-of-sight (With Optional 12dbi Antennas)
|
Operating Temperature:
|
-10 to 130 ºF (-23 to 54 ºC)
|
Enclosure:
|
Plastic (Indoor or protected use only)
|
Antennas:
|
Includes 3dBi Antennas & 9' Extention Cables
|
|
Transmitter Specifications
|
Input Signal:
|
Analog Current 4-20mA
|
RF Power Output:
|
63mW (10mW -EU Models)
|
RF Data Rate:
|
250 Kbps
|
Transmitt Rate (Factory Set):
|
Every 1 Second
|
|
Receiver Specifications
|
Receive Sensitivity:
|
-100 dBm
|
RF Input Impedance:
|
50 Ohm nominal
|
|
Regulatory Approvals
|
Regulatory:
|
FCC Part 95 (No license required)
|
FCC(USA):
|
OUR-XBEEPRO
|
IC (Canada):
|
4214A-XBEEPRO
|
|
Available Models
|
Model Number
|
Description
|
DRWS-420-USCA
|
Wireless 4-20mA Transmitter/Reciever Set - USA & Canada
|
DRWS-420-EU
|
Wireless 4-20mA Transmitter/Reciever Set - EU
|
|
Optional Antennas
|
Model Number
|
Description
|
AT24-7DBI-OD-RP-SMA*
|
7dBi Medium Range Antenna
|
AT24-9DBI-YD-RP-SMA*
|
9dBi Long Range Antenna
|
|
*Optional Antenna. Order 2 each when these antennas are needed.
Each Wireless 4-20mA Transmitter/Receiver Set includes 3dBi Antennas, 9'Antenna Extension Cables, Antenna Mounting Brackets and User Manuals.
Note: Continued product improvements make specifications subject to change without notice.
|
This product is approved for use in USA, Canada and Europe only.
|
