Solar Panel Side-of-pole Mounting Brackets
Series: SPB1
Features

Rugged, Heavy Duty Construction

Includes Everything Needed For Installation

Aluminum Frame/Stainless Steel Hardware

Designed For Side-of-Pole Mounting

Applications
|
- Solar Powered Wireless Sensors
- Base Stations & Receivers
- Data Logging
|
- Wireless Transmitters
- Wireless Repeaters
- Solar Powered Monitoring System
|
Description

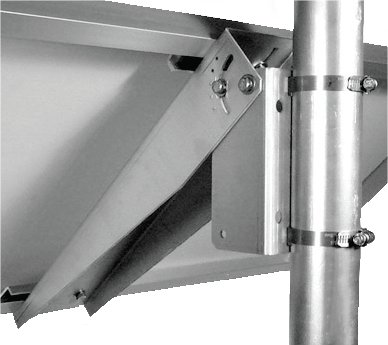

The SPB1 series Side-of-Pole bracket is a simple and easy to install
pole mounting solution for medium size solar panel (module).
It's user settable angle setting supports installations in a wide range of locations.
Three different models accommodate a single PV panel up to 5.5 square feet and mounts to any size pole from 2.0 inches to 4.5-inches in diameter.
|
Specifications
|
Material Construction:
|
Aluminum Frame, Stainless Steel Hardware
|
Angle Adjustment:
|
15°-90°
|
Wind Speed Rating:
|
Up to 110 mph
|
|
Available Models
|
Model Number
|
Rail Length
|
Pipe Size
|
Max Panel
|
SPB1-13
|
13" (mm)
|
2-4
|
2.5
|
SPB1-18
|
18" (mm)
|
2-4
|
4.5
|
SPB1-26
|
26"(mm)
|
2-4
|
5.5
|
|

|
