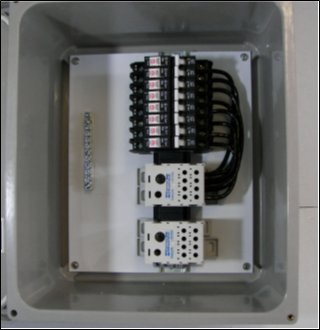

Dual Fused Solar Combiner
|
|
|
|
|
|
Solar Combiner Box with Circuit Breakers
Series: SCB-CBXL
Features
Models with 6, 7 or 8 String Configuration
Continuous Duty Rated at 150V DC
Touch-safe Circuit Breakers
All UL Compliant Components
Weatherproof, Non-conductive Enclosure
|
|
|
Description
SCB-CBXL Series - Solar Power Combiners feature a weatherproof, non-conductive enclosure. Models are available configured for 6, 7 or 8 string configuration with 5, 10, 15 or 20 Amp circuit breakers and are rated for a maximum 150V DC continuous duty per string.
|
|
General Specifications
|
|
Operating Temperature:
|
-40 to 149 ºF (-40 to 65 ºC)
|
|
Enclosure: Material:
|
Fiberglass/Plastic Blend
|
|
Enclosure Rating:
|
NEMA 4, 4X, UV Stabilized
|
|
Enclosure Size:
|
11.8 x 9.9 x 6.8"
|
|
|
Available Models
|
|
Model Number
|
SCB-CBXL-6-5
|
SCB-CBXL-7-5
|
SCB-CBXL-8-5
|
|
Input Circuits
|
6
|
7
|
8
|
|
Input Solar Cable Size
|
8 - 14 AWG
|
8 - 14 AWG
|
8 - 14 AWG
|
|
Output Wire Size
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
|
Max Voltage Rating
|
150 Vdc
|
150 Vdc
|
150 Vdc
|
|
Circuit Breaker Capacity
|
5 Amp
|
5 Amp
|
5 Amp
|
|
Max Total DC Output Current
|
30 Amps
|
35 Amps
|
40 Amps
|
|
Model Number
|
SCB-CBXL-6-10
|
SCB-CBXL-7-10
|
SCB-CBXL-8-10
|
|
Input Circuits
|
6
|
7
|
8
|
|
Input Solar Cable Size
|
8 - 14 AWG
|
8 - 14 AWG
|
8 - 14 AWG
|
|
Output Wire Size
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
|
Max Voltage Rating
|
150 Vdc
|
150 Vdc
|
150 Vdc
|
|
Circuit Breaker Capacity
|
10 Amp
|
10 Amp
|
10 Amp
|
|
Max Total DC Output Current
|
60 Amps
|
70 Amps
|
80 Amps
|
|
Model Number
|
SCB-CBXL-6-15
|
SCB-CBXL-7-15
|
SCB-CBXL-8-15
|
|
Input Circuits
|
6
|
7
|
8
|
|
Input Solar Cable Size
|
8 - 14 AWG
|
8 - 14 AWG
|
8 - 14 AWG
|
|
Output Wire Size
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
|
Max Voltage Rating
|
150 Vdc
|
150 Vdc
|
150 Vdc
|
|
Circuit Breaker Capacity
|
15 Amp
|
15 Amp
|
15 Amp
|
|
Max Total DC Output Current
|
90 Amps
|
105 Amps
|
120 Amps
|
|
Model Number
|
SCB-CBXL-6-20
|
SCB-CBXL-7-20
|
SCB-CBXL-8-20
|
|
Input Circuits
|
6
|
7
|
8
|
|
Input Solar Cable Size
|
8 - 14 AWG
|
8 - 14 AWG
|
8 - 14 AWG
|
|
Output Wire Size
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
1 Ea. 350 kcmil - 6 AWG
1 Ea. 2/0 - 14 AWG
|
|
Max Voltage Rating
|
150 Vdc
|
150 Vdc
|
150 Vdc
|
|
Circuit Breaker Capacity
|
20 Amp
|
20 Amp
|
20 Amp
|
|
Max Total DC Output Current
|
120 Amps
|
140 Amps
|
160 Amps
|
|
|
Note: Continued product improvements make specifications subject to change without notice.
|
