Wireless Din-rail Remote Control Transmitter/Receiver System WXL-ME - Long Distance Wireless Remote Control Set

The WXL-ME transmitters and receivers are designed for use in various wireless remote-control applications. When triggered with an external dry-contact switch, the switch transmitter will send a digital encoded, FSK modulated signal to its companion control receiver. The receiver will verify the digital code and then activate its relay output. This unit features rugged aluminum enclosures and an alarm function for low battery or RF signal loss. Operation up to 6 miles. Replacement for Linear XT XR units.

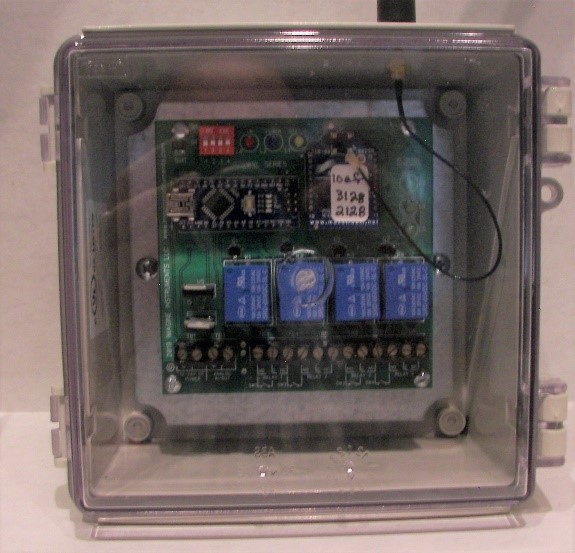

Wireless Remote Control System WXL Series - Wireless Remote Control System

Series WXL Wireless Remote Control System provides a wireless bridge between any type dry-contact switch and a control relay. When a switch connected to the transmitting unit opens or closes signals are sent via a license free radio signal to a receiver unit up to 6 miles (Line-of-site) away. When the control box receives the proper wireless signal from the transmitter a control relay inside the panel is energized to operate a pump, valve, gate or motor.


Wireless Sensor System XTR-SN24-TC Series - Wireless Thermocouple Transmitters

XTR-SN24-TC Series Wireless Thermocouple Transmitters feature a factory programmed transmitter / receiver matched set. The transmitter sends Thermocouple measurements to a base receiver up to 1 mile away using license free 2.4 GHz RF technology. The receiver base provides analog voltage or current (4-20ma)output. Each Transmitter/Receiver set is factory coded as a matched set and requires no field programming. Models can be solar powered.

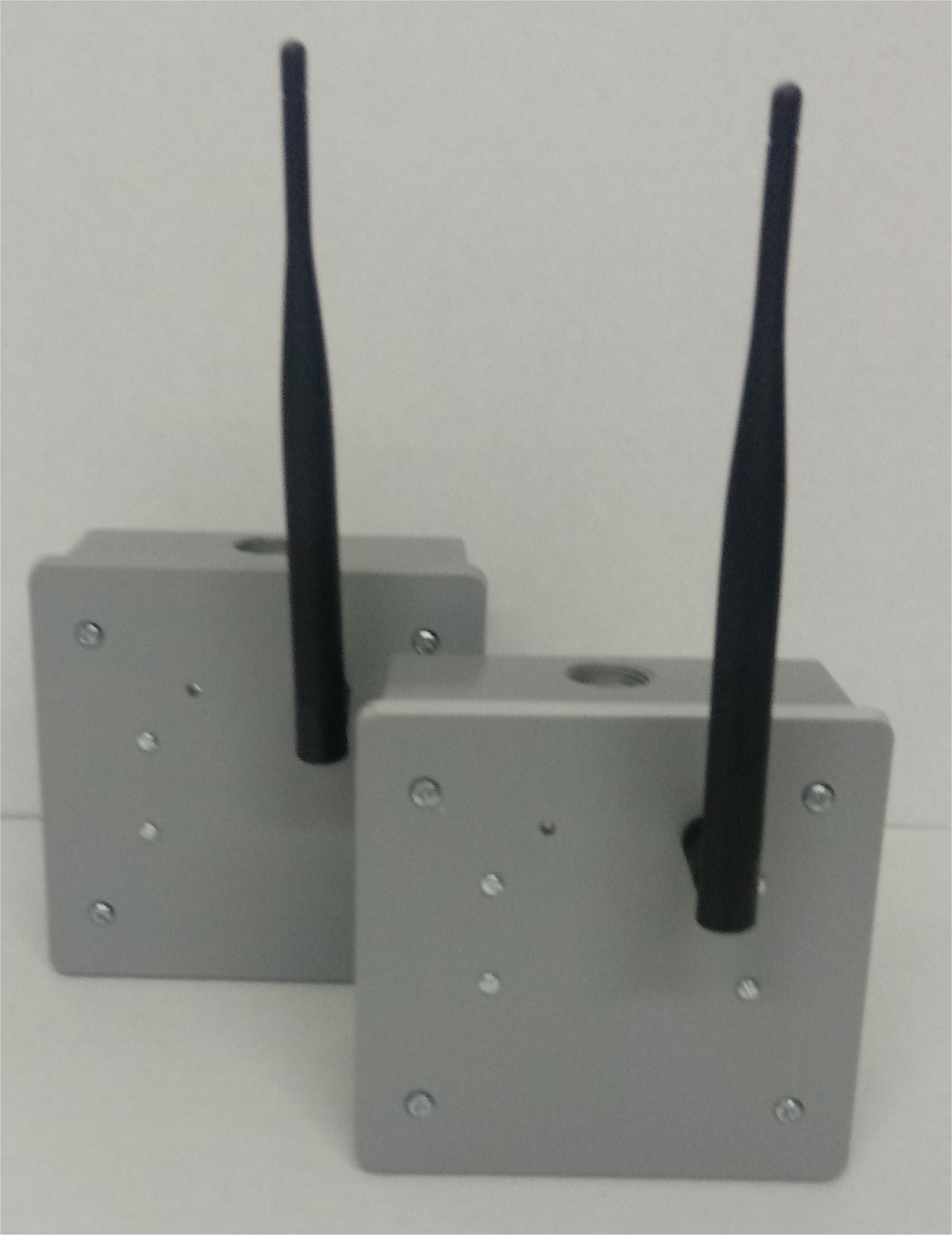

Wireless 4-20mA Transmitter/Receiver System WIDXL-900-420MA Industrial Wireless 4-20mA Transmitter / Receiver Set

The WIDXL-900-420 Series Wireless 4-20mA Transmitter / Receiver System provides a wireless bridge for 4-20mA signals. You can send readings from industrial sensors up to 6 miles away by means of a wireless RF signal. A 4-20mA input measured by the transmitter is recreated by the receiver which in turn produces a mirror output. Units also include one bi-directional control line.


Wireless 4-20mA Transmitter XTR-WRC420 Wireless 4-20mA Signal Transmitter/Receiver

The XTR-WRC420 Wireless Analog 4-20mA Transmitter/Receiver System allows for remotely monitoring or controlling equipment from a distance up to 6 miles away using license free wireless radio communication. Each set features one 4-20mA analog signal input and output. Each system is sold as a factory programmed matched set. That means there is no field settings needed to operate right out of the box.


Wireless Remote Control System WCS24-OC Series - Wireless Remote Control System

The WCS24-OC Series Wireless Remote Control System allows for remotely activating equipment from a distance of up to 1 mile away using license free wireless 802.15.4 communication. The transmitter is equipped with up to four contact closure inputs that are used to control open-collector outputs on the receiver unit. Models are available with 1, 2 or 4 control lines. Transmitter can be activated with dry-contact switches or connected to a PLC for automated control.

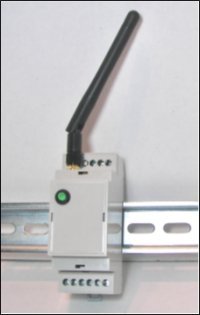

Wireless Din-rail Remote Control Transmitter/Receiver System DRWC-24 Series - Wireless Din-rail Remote Control Set

The DRWC-24 Series Wireless Remote Control System allows for remotely activating equipment from a distance of up to 1 mile away using license free wireless 2.4GHz 802.15.4 communication. The transmitter is equipped with up to four contact closure inputs that are used to control open-collector outputs on the receiver unit. Models are available with 1, 2 or 4 control lines. Transmitter can be activated with dry-contact switches or connected to a PLC for automated control.
